国家基因库单细胞训练营 -- 单细胞ATAC数据基础分析

scATAC 分析教程

作者:马雯

1. 建库过程

1.1 Tn5酶构建ATAC-seq文库原理

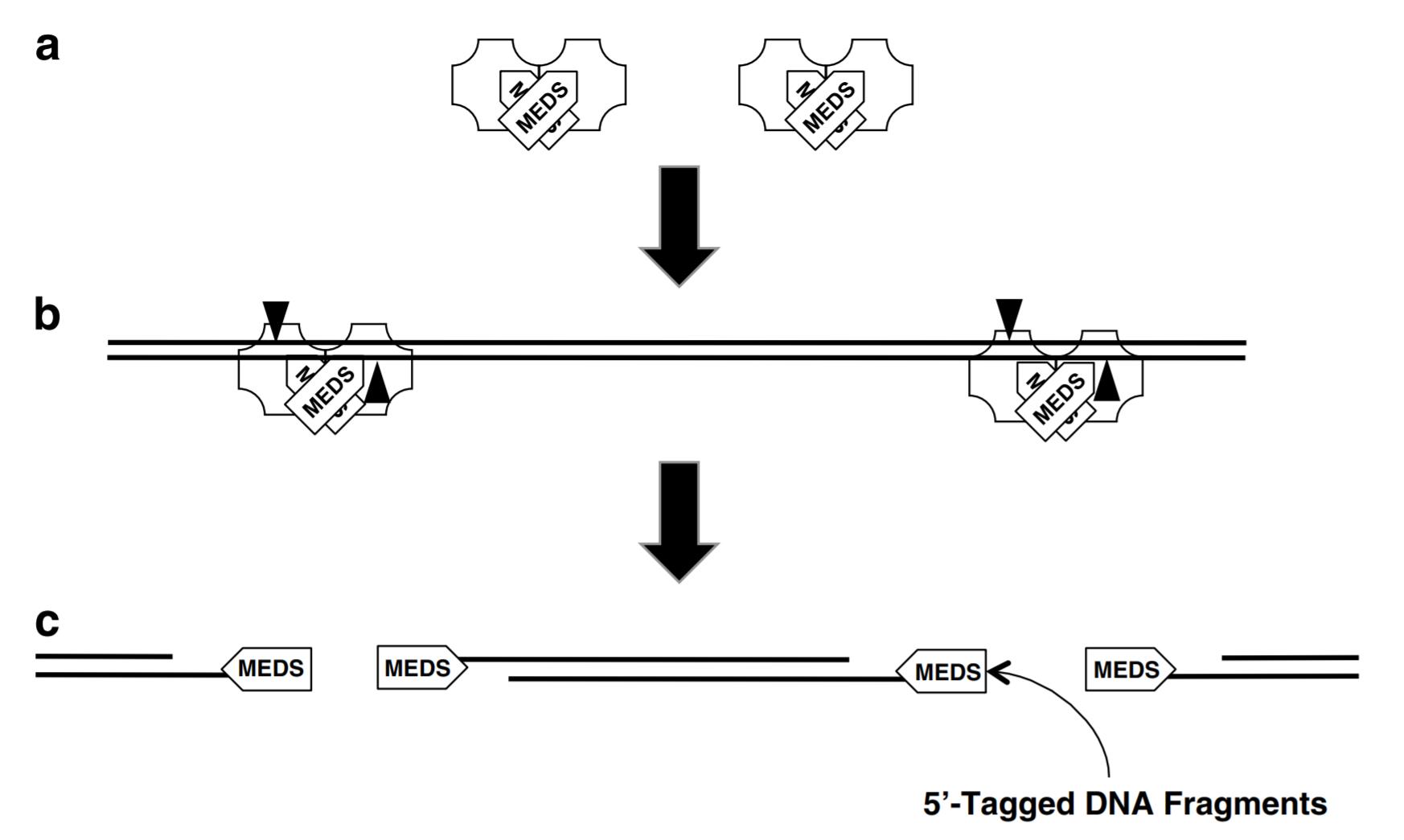

Tn5转座子由编码抗性基因的核心序列和两条倒置的IS50 序列组成,其中IS50R和IS50L的序列高度同源,含有编码转座酶(TnP)以及转座阻遏蛋白(lnh)的基因,但IS50L的一个碱基存在突变导致翻译提前终止,因此只有IS50R可以产生正常的有活性的TnP和lnh。IS50具有19bp的倒置末端(外末端outsideend,OE和内末端inside end,IE),两倒置末端有7个bp不同,此倒置末端是转座酶(Tnp)的作用位点。发生转座事件时,两个转座子酶(Tnp)与转座子末端OE末端结合,形成两个Tnp-OE复合体,随后两个复合体通过Tnp的C末端相互作用进行联会,形成一个Tn5转座复合体后产生切割DNA的活性。具有切割DNA活性之后,切割目标DNA,将转座子插入到靶序列中,粘性末端通过DNA聚合酶、连接酶作用进行填补,两端形成9bp正向重复序列。

研究人员发现,整个转座子序列并不是转座必须的,只需转座子的末端核心序列,转座酶便能将该部分序列插入并连接至基因组内;根据这个原理,将测序接头序列加入末端核心序列中,可简捷地引入测序接头,完成文库构建。传统建库方式需要经过DNA片段化、末端修复、接头连接、文库扩增、多次纯化分选等步骤,耗时较长,将Tn5用于测序文库构建时,可将DNA片段化、末端修复、接头连接等多步反应转变为1步反应,极大缩短建库时间,提高工作效率。

1.2单细胞ATAC-seq建库过程

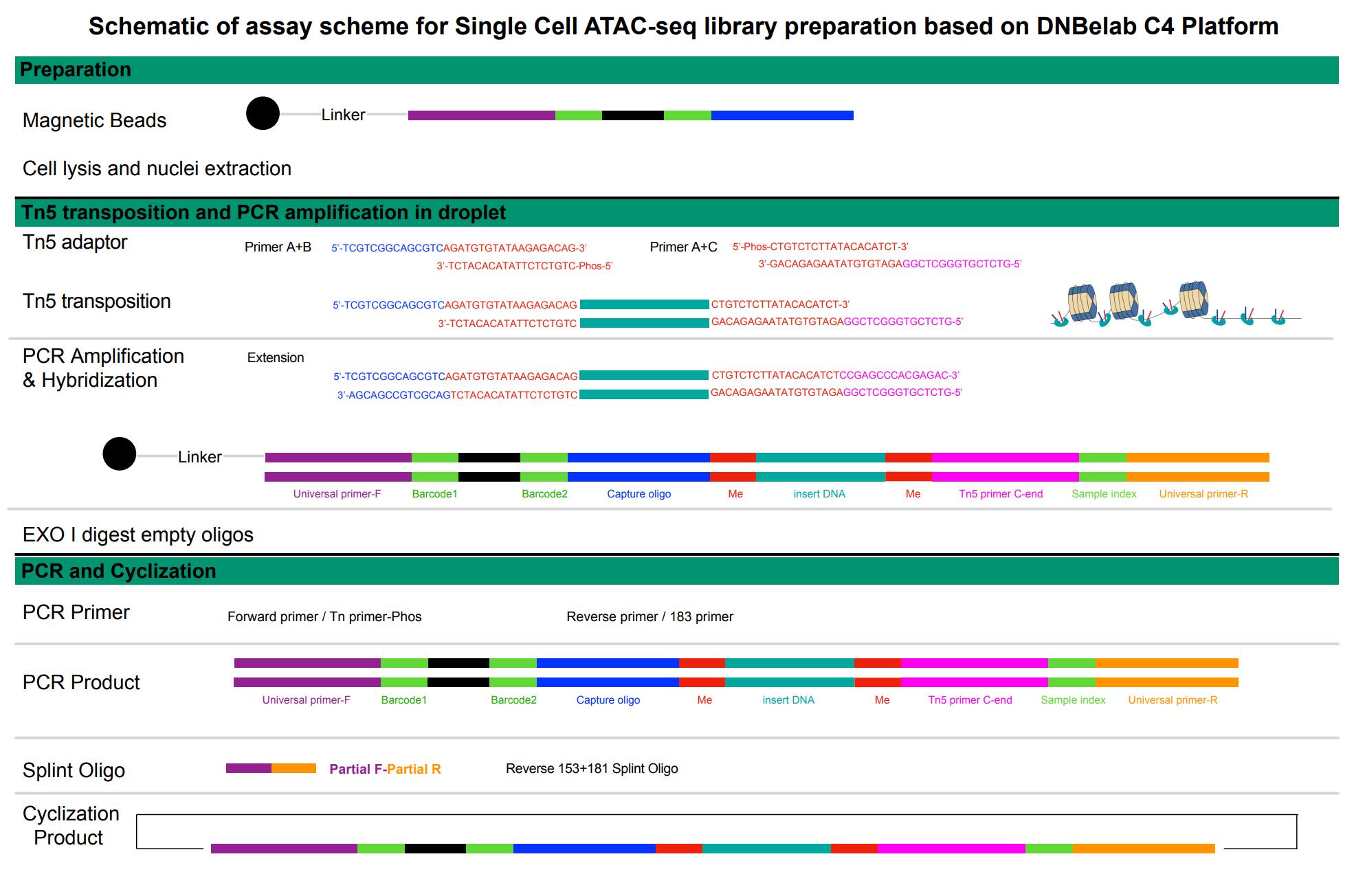

下图为DNBelab C系列高通量单细胞ATAC文库构建测序流程。基于负压驱动的液滴微流控系统,结合自主设计的高密度微珠,可以实现对单细胞进行高通量barcoding 首先,制备高质量的单细胞核悬液,保证活率在80%以上;然后,将制备好的单细胞核悬液、用于捕获单细胞DNA片段的barcode标记的磁珠和液滴生成油上样到便携式微流控装置中。该装置能生成大量油包水液滴,每个液滴中理想状态下包含一个beads和一个cell,在液滴中Tn5酶进入细胞核将开放染色质打断,释放DNA片段,DNA片段被磁珠捕获,同一个cell的DNA片段会被带上相同的barcode分子标签,实现了单个细胞的标记。

Smiley face

2. scATAC 自动化分析V3系统分析过程与结果

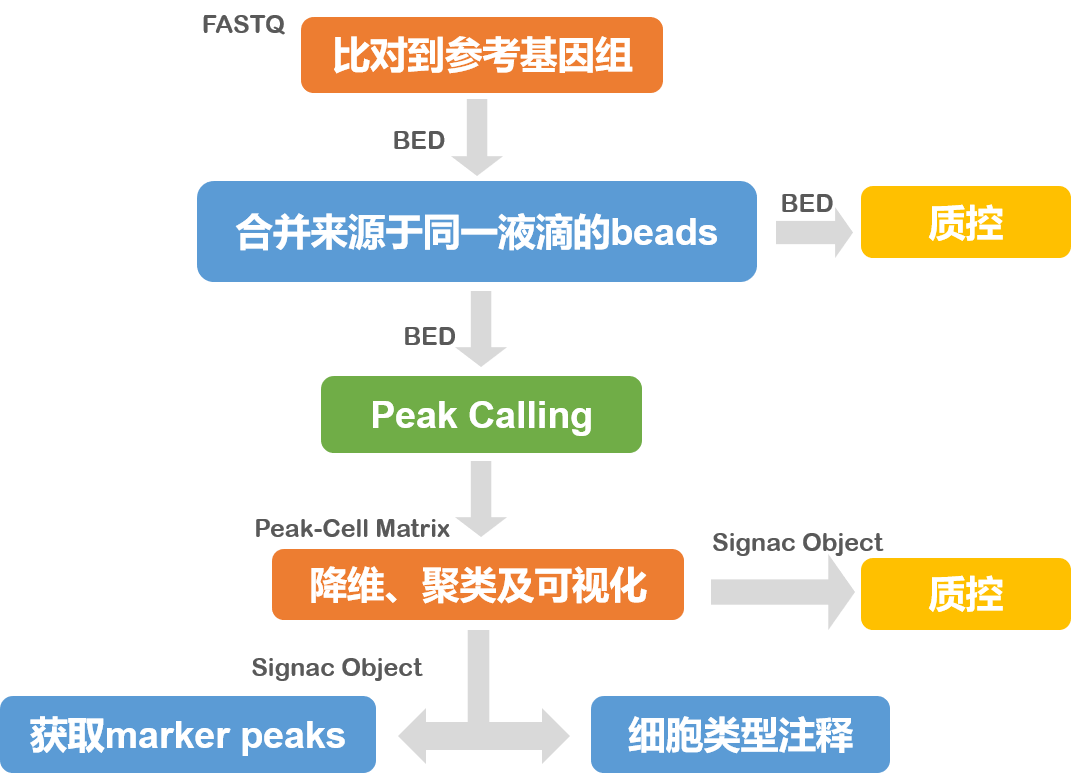

流程概述

2.0 数据结构

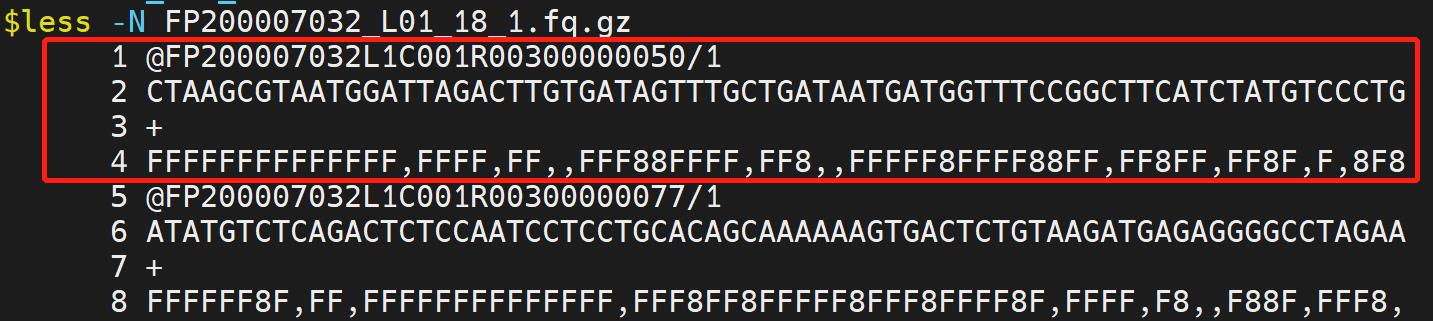

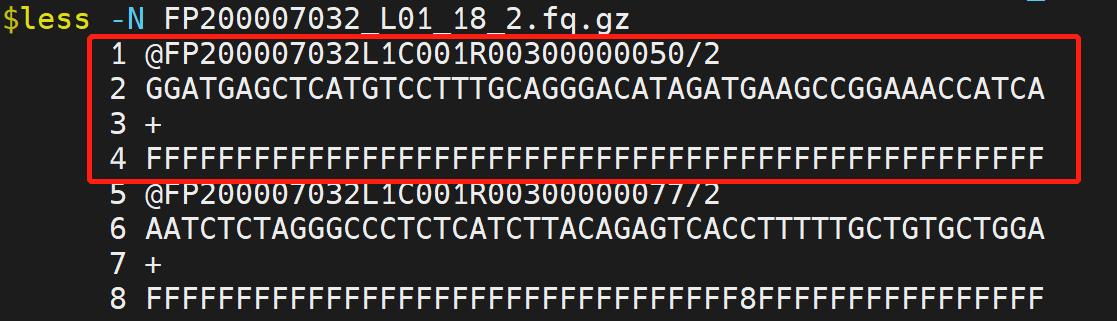

  • read1 70bp; 1-20bp barcode序列,21-70bp DNA序列

  • read2 50bp; 1-50bp DNA序列

2.1 比对

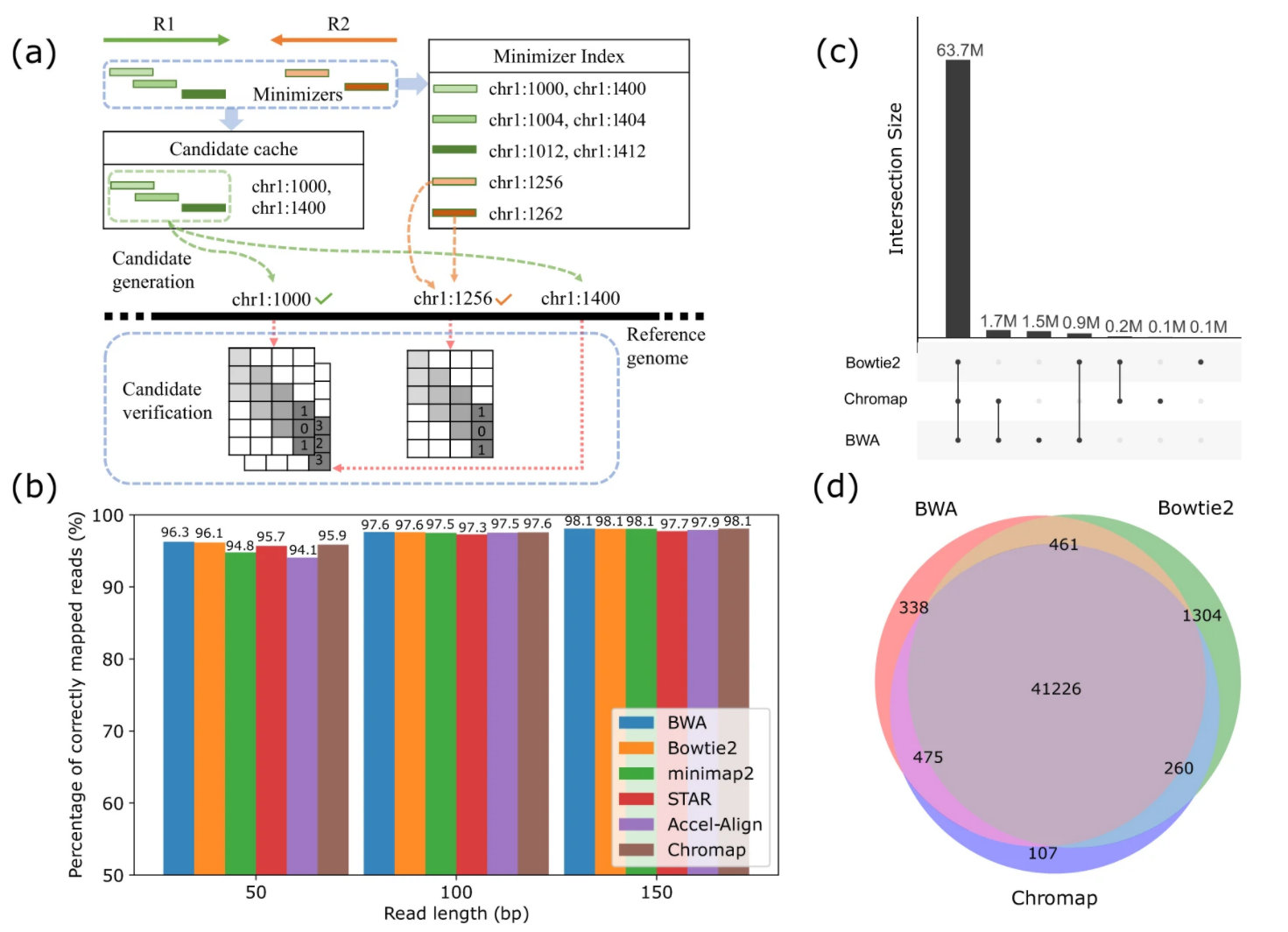

使用chromap进行比对 chromap参考文献

  • chromap 的优点
  1. 比对速度较bwa mem2 提升了10倍

  2. 比对准确性与bwa mem2相当

  • chromap 比对过程
  1. 识别barcode,与whitelist匹配,不匹配的read不再进行比对(目前不允许有mismatch)

  2. 去除adapter

  3. DNA序列比对到参考基因组上

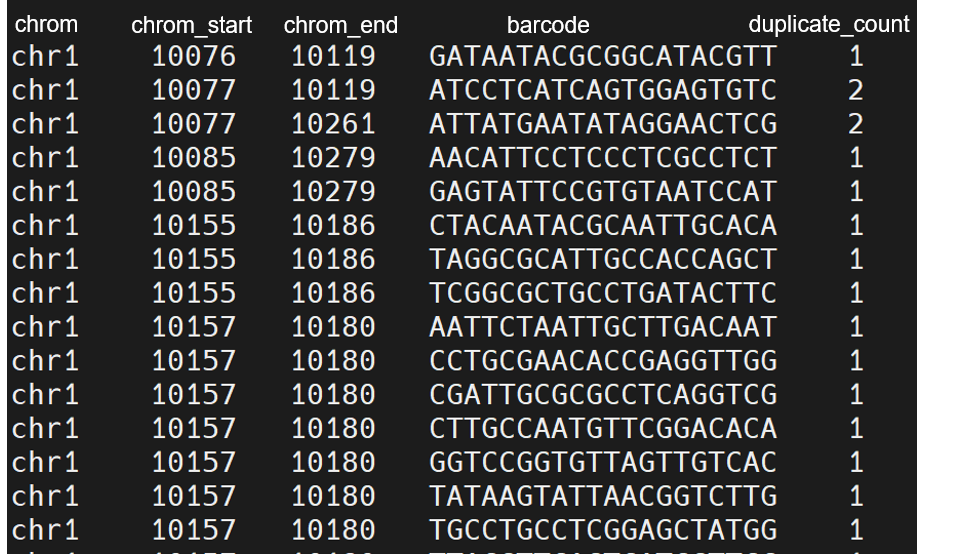

  4. 比对结果文件(out/aln.bed)

2.2 去除背景

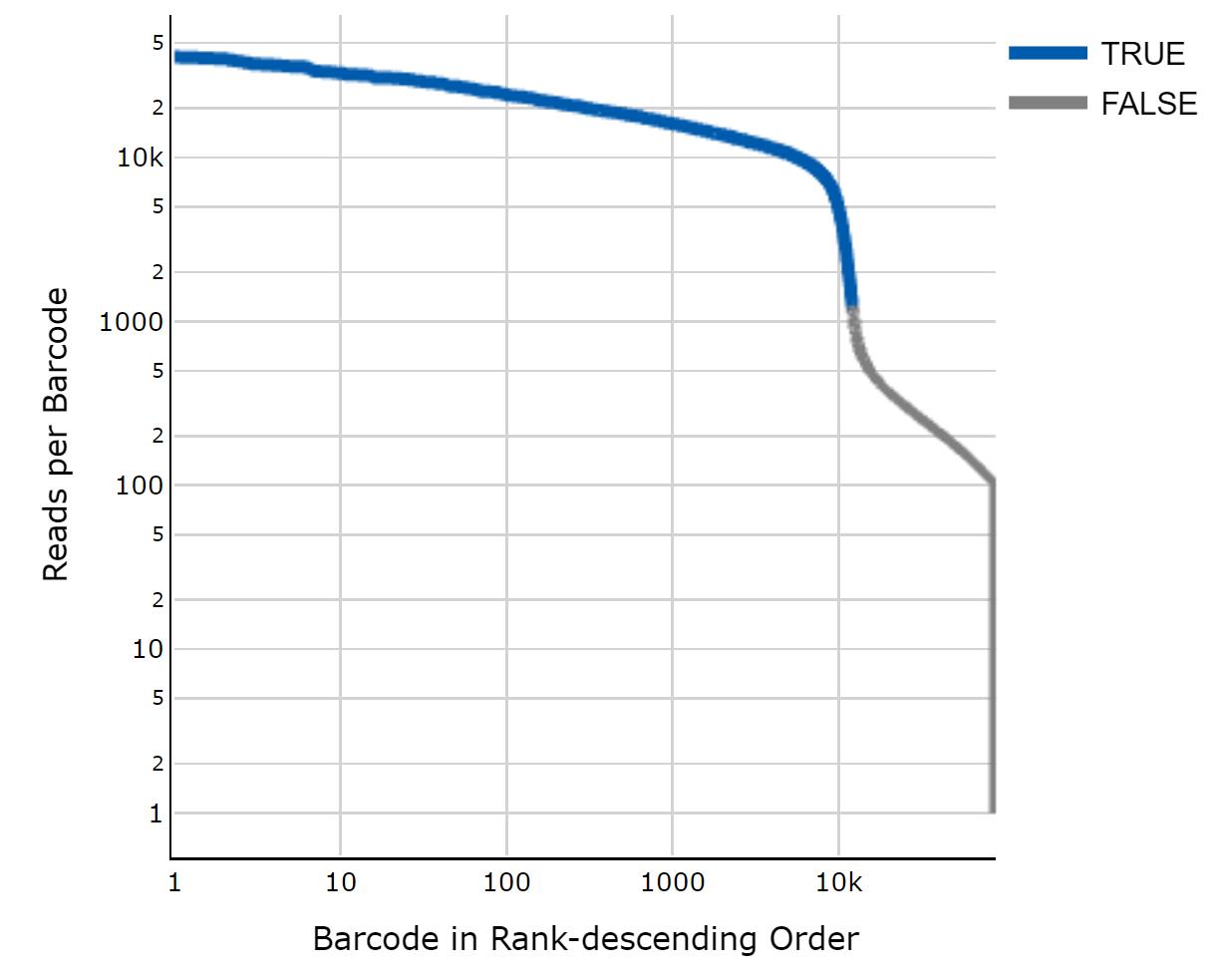

捕获到完整细胞的beads与没有捕获到细胞或捕获到破裂细胞的beads中fragment数目差异较大,因此对每个beads中捕获到的fragment数目进行排序,如果fragment数目突然减少(骤降),骤降点以下的beads为空beads;以下图为例,蓝色区域为完整细胞,灰色区域为空beads或破损细胞

2.3 beads合并

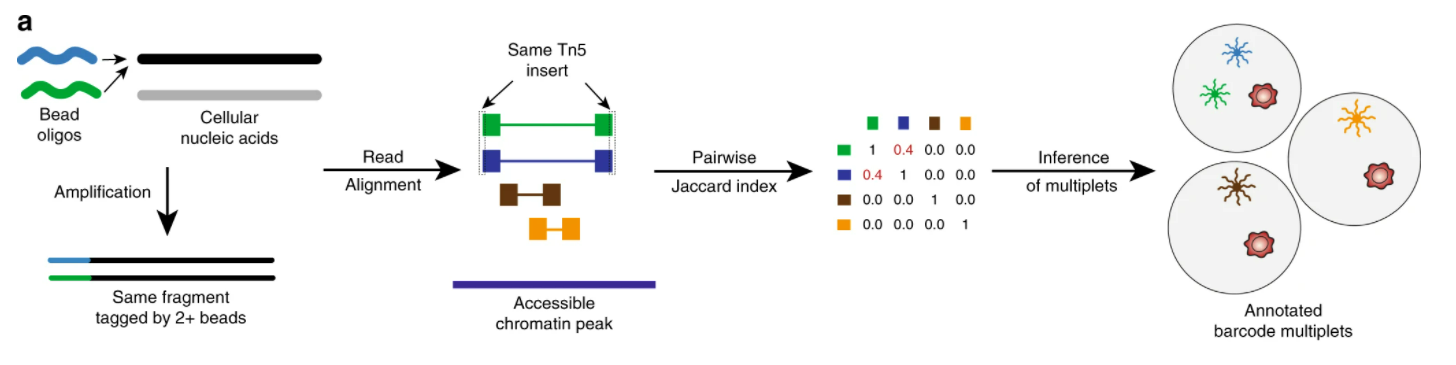

在实验过程中为获取更多的细胞,会投入较多的beads,从而造成一个液滴中多个beads的现象。为还原真实的细胞染色质开放信息,使用d2c根据beads中fragment中的相似性进行beads 合并,参考文献

  • 液滴中出现捕捉多个beads一个细胞的情况
  • 通过计算两个beads之间相似性(jaccard index),推测beads来源于同一个液滴

2.4 peak calling

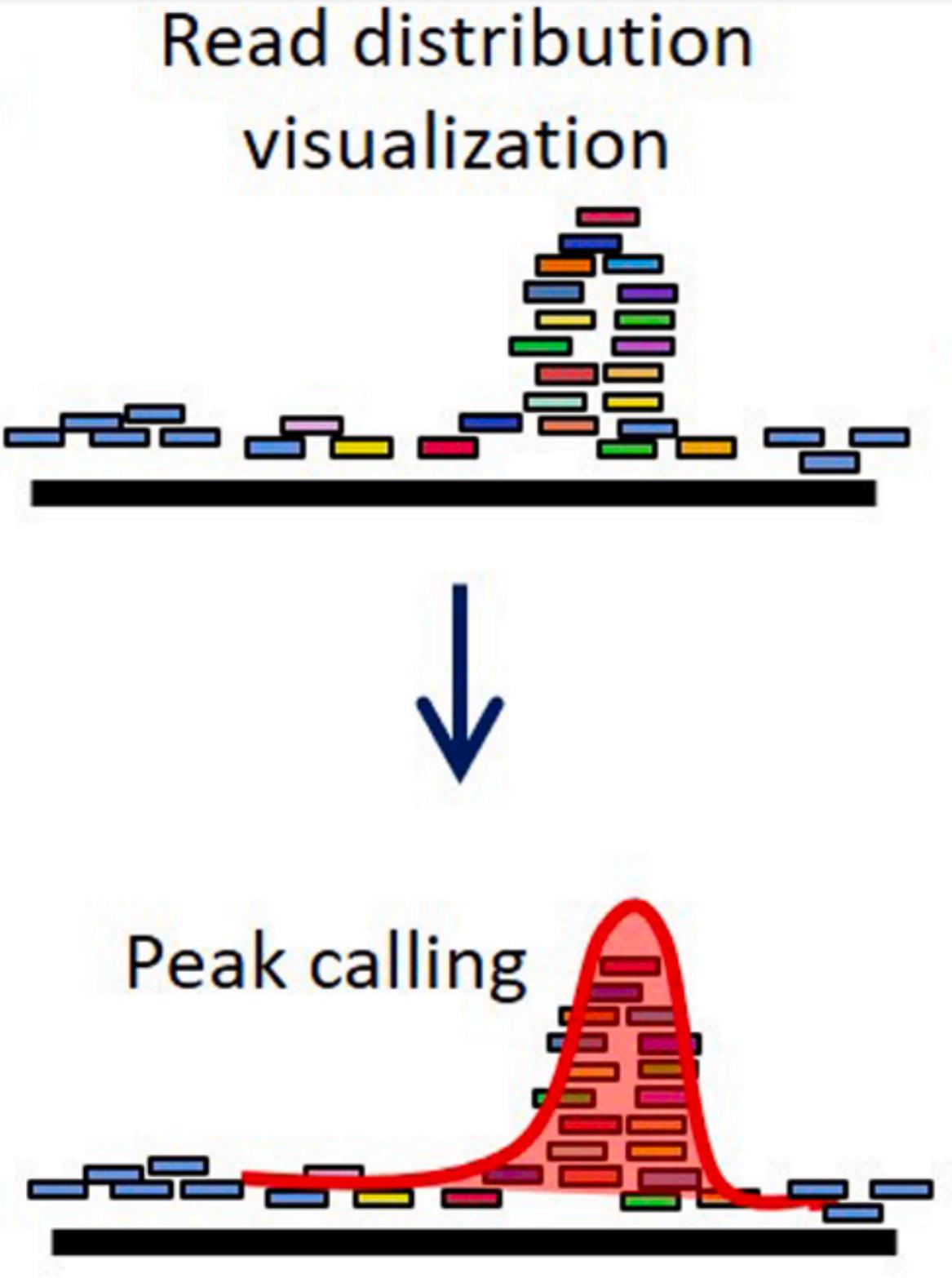

peak calling是通过计算方法识别基因组中由测序得到的比对reads富集的区域,对ATAC而言,peak为开放染色质的区域。 目前流程使用基于reads count的方法macs2来做peak calling

3. 使用ArchR进行scATAC下游分析

本教程例子选用PBMC样本

3.1 加载R包并获取gene和基因组信息

加载ArchR 包 设置线程 设置种子数
In [1]:

library(ArchR)
library(parallel)
library(Seurat)

library(pryr)
addArchRThreads(threads = 16)
set.seed(1)

Out [1]:

                                               / |
                                             /    \
        .                                  /      |.
        \\\                              /        |.
          \\\                          /           `|.
            \\\                      /              |.
              \                    /                |\
              \\#####\           /                  ||
            ==###########>      /                   ||
             \\##==......\    /                     ||
        ______ =       =|__ /__                     ||      \\\
    ,--' ,----`-,__ ___/'  --,-`-===================##========>
   \               '        ##_______ _____ ,--,__,=##,__   ///
    ,    __==    ___,-,__,--'#'  ==='      `-'    | ##,-/
    -,____,---'       \\####\\________________,--\\_##,/
       ___      .______        ______  __    __  .______
      /   \     |   _  \      /      ||  |  |  | |   _  \
     /  ^  \    |  |_)  |    |  ,----'|  |__|  | |  |_)  |
    /  /_\  \   |      /     |  |     |   __   | |      /
   /  _____  \  |  |\  \\___ |  `----.|  |  |  | |  |\  \\___.
  /__/     \__\ | _| `._____| \______||__|  |__| | _| `._____|

ArchR : Version 1.0.2
For more information see our website : www.ArchRProject.com
If you encounter a bug please report : https://github.com/GreenleafLab/ArchR/issues

Loading Required Packages...

Loading Package : grid v4.0.5

Loading Package : gridExtra v2.3

Loading Package : gtools v3.9.3

Loading Package : gtable v0.3.0

Loading Package : ggplot2 v3.3.6

Loading Package : magrittr v2.0.3

Loading Package : plyr v1.8.7

Loading Package : stringr v1.4.0

Loading Package : data.table v1.14.2

Loading Package : matrixStats v0.62.0

Loading Package : S4Vectors v0.28.1

Loading Package : GenomicRanges v1.42.0

Loading Package : BiocGenerics v0.36.1

Loading Package : Matrix v1.4.1

Loading Package : Rcpp v1.0.9

Loading Package : SummarizedExperiment v1.20.0

Loading Package : rhdf5 v2.34.0

Attaching SeuratObject

Attaching sp

Attaching package: ‘Seurat’

The following object is masked from ‘package:SummarizedExperiment’:

Assays

Attaching package: ‘pryr’

The following object is masked from ‘package:data.table’:

address

Input threads is equal to or greater than ncores minus 1 (15)
Setting cores to ncores minus 2. Set force = TRUE to set above this number!

Setting default number of Parallel threads to 14.

添加ArchRGenome

对于human和mouse这两个物种可直接通过addArchRGenome添加

tips:gene与genome 的版本要与reads比对参考基因组的版本一致
In [2]:

setwd('/home/jovyan')
# 本例为添加hg38
addArchRGenome("hg38")
# addArchRGenome("hg19")
# addArchRGenome("mm9")
# addArchRGenome("mm10")

Out [2]:
Setting default genome to Hg38.

对于非人非鼠的物种,可自己构建ArchRGenome

以果蝇(Drosophila melanogaster)为例

创建genome annotation文件
In []:

#if (!requireNamespace("BSgenome.Dmelanogaster.UCSC.dm6", quietly = TRUE)){
#  BiocManager::install("BSgenome.Dmelanogaster.UCSC.dm6")
#}
#library(BSgenome.Dmelanogaster.UCSC.dm6)
#genomeAnnotation <- createGenomeAnnotation(genome = BSgenome.Dmelanogaster.UCSC.dm6)

#genomeAnnotation可以保存成rds文件,下次使用直接加载rds使用不需要每次都构建

创建gene annotation文件
In [1]:

#library("TxDb.Dmelanogaster.UCSC.dm6.ensGene")
#library("org.Dm.eg.db")
#geneAnnotation <- createGeneAnnotation(TxDb = TxDb.Dmelanogaster.UCSC.dm6.ensGene, OrgDb = org.Dm.eg.db)
#geneAnnotation可以保存成rds文件,下次使用直接加载rds使用不需要每次都构建

3.2 创建arrowfiles

3.2.1 ArrowFiles

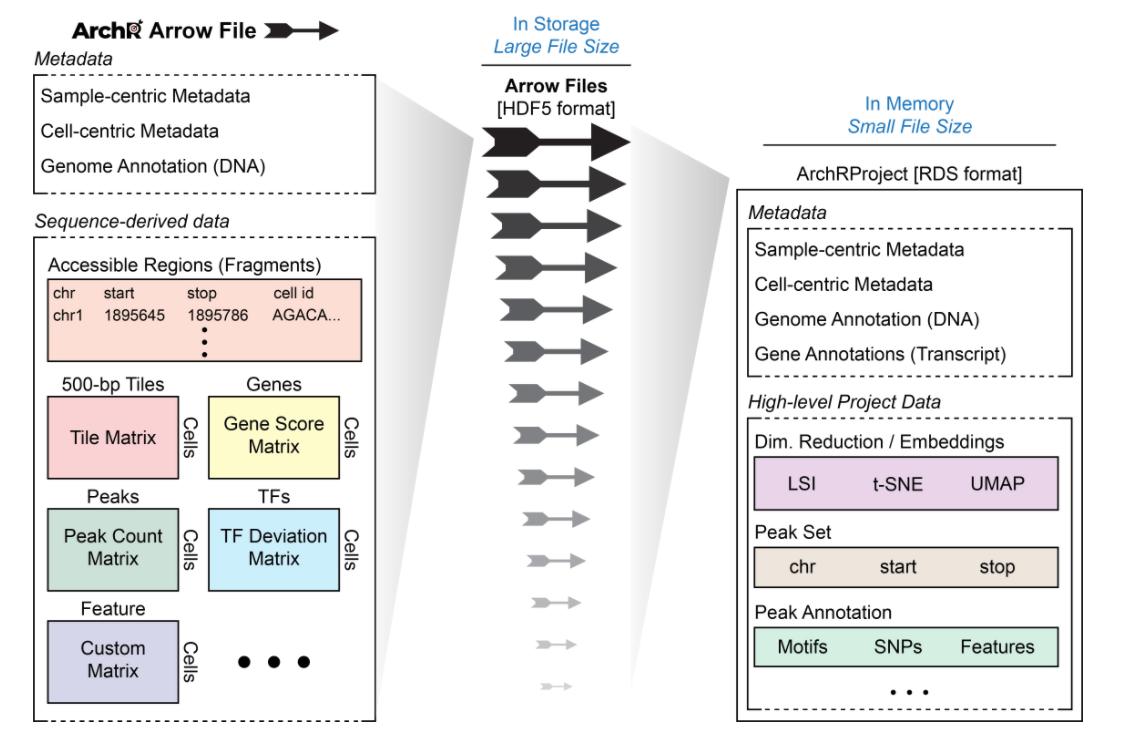

ArrowFiles是存储在硬盘中的H5文件,其中包含有细胞的metadata信息、fragment信息、500bp Tile Matrix、GeneActivityScore Matrix、Peak Count Matrix 等一系列信息;由于scATAC 矩阵更加的稀疏,相应所占空间更多,为加速R的运算,这些信息会存储在ArrowFiles文件中,使用时通过读取ArrowFiles文件来获取信息,促使ArchRProject文件大小较小,减少内存占用。

3.2.2 使用fragment文件创建ArrowFiles

可使用bed格式的fragment 文件和bam文件进行ArrowFiles文件的创建。此例中使用bed格式的fragment文件进行ArrowFiles的创建。

bam文件中reads没有经过+4-5处理,默认加入offsetPlus = 4,offsetMinus = -5 产生真实的fragment片段。这两个参数对BED文件不起作用
In [5]:

setwd('/home/jovyan')
# fragment 文件读入
inputdir="/opt/example/00.scATAC_data/"
first_name <- list.files(inputdir,"tsv.gz$")
sample_name <- gsub(".fragments.tsv.gz","",first_name)
FragmentFiles <- paste(inputdir,first_name,sep="/")
names(FragmentFiles) <- sample_name

## 15 min 1.15G内存
ArrowFiles <- createArrowFiles(
 inputFiles = FragmentFiles,
 minFrags = 1000, #Dont","set","this","too","high","because","you","can","always","increase","later
 minTSS = 4,
 addTileMat = TRUE,
 addGeneScoreMat = TRUE,
 threads = 1,
 force = T
)

Out [5]:
Using GeneAnnotation set by addArchRGenome(Hg38)!

Using GeneAnnotation set by addArchRGenome(Hg38)!

ArchR logging to : ArchRLogs/ArchR-createArrows-3a24ac710f-Date-2022-08-23_Time-03-20-22.log
If there is an issue, please report to github with logFile!

Cleaning Temporary Files

2022-08-23 03:20:22 : Batch Execution w/ safelapply!, 0 mins elapsed.

(0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Determining Arrow Method to use!

2022-08-23 03:20:22 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading In Fragments from inputFiles (readMethod = tabix), 0.001 mins elapsed.

2022-08-23 03:20:22 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Tabix Bed To Temporary File, 0.001 mins elapsed.

2022-08-23 03:21:06 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 8 Percent, 0.724 mins elapsed.

2022-08-23 03:21:36 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 17 Percent, 1.227 mins elapsed.

2022-08-23 03:22:04 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 25 Percent, 1.688 mins elapsed.

2022-08-23 03:22:29 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 33 Percent, 2.111 mins elapsed.

2022-08-23 03:22:53 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 42 Percent, 2.516 mins elapsed.

2022-08-23 03:23:21 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 50 Percent, 2.975 mins elapsed.

2022-08-23 03:23:41 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 58 Percent, 3.305 mins elapsed.

2022-08-23 03:24:03 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 67 Percent, 3.669 mins elapsed.

2022-08-23 03:24:25 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 75 Percent, 4.048 mins elapsed.

2022-08-23 03:24:51 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 83 Percent, 4.479 mins elapsed.

2022-08-23 03:25:05 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 92 Percent, 4.707 mins elapsed.

2022-08-23 03:25:19 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Reading TabixFile 100 Percent, 4.941 mins elapsed.

2022-08-23 03:25:20 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Successful creation of Temporary File, 4.956 mins elapsed.

2022-08-23 03:25:20 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Creating ArrowFile From Temporary File, 4.956 mins elapsed.

2022-08-23 03:26:45 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Successful creation of Arrow File, 6.371 mins elapsed.

2022-08-23 03:28:19 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) CellStats : Number of Cells Pass Filter = 7799 , 7.939 mins elapsed.

2022-08-23 03:28:19 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) CellStats : Median Frags = 6163 , 7.939 mins elapsed.

2022-08-23 03:28:19 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) CellStats : Median TSS Enrichment = 22.045 , 7.939 mins elapsed.

2022-08-23 03:28:21 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Adding Additional Feature Counts!, 7.981 mins elapsed.

2022-08-23 03:29:40 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Removing Fragments from Filtered Cells, 9.295 mins elapsed.

2022-08-23 03:29:40 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Creating Filtered Arrow File, 9.295 mins elapsed.

2022-08-23 03:30:09 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Finished Constructing Filtered Arrow File!, 9.785 mins elapsed.

2022-08-23 03:30:10 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Adding TileMatrix!, 9.786 mins elapsed.

2022-08-23 03:32:27 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Adding GeneScoreMatrix!, 12.074 mins elapsed.

2022-08-23 03:34:36 : (0607-ATAC-PBMC-ZYH-0302-2 : 1 of 1) Finished Creating Arrow File, 14.224 mins elapsed.

ArchR logging successful to : ArchRLogs/ArchR-createArrows-3a24ac710f-Date-2022-08-23_Time-03-20-22.log

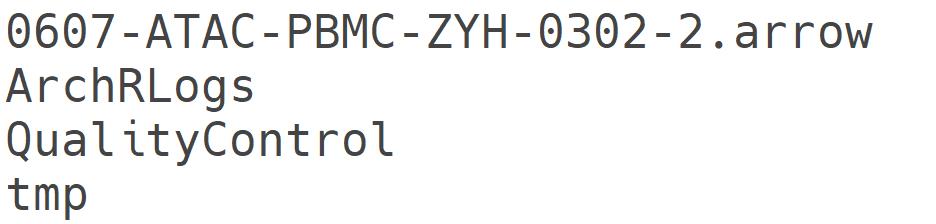

3.3 推测计算双胞可能性

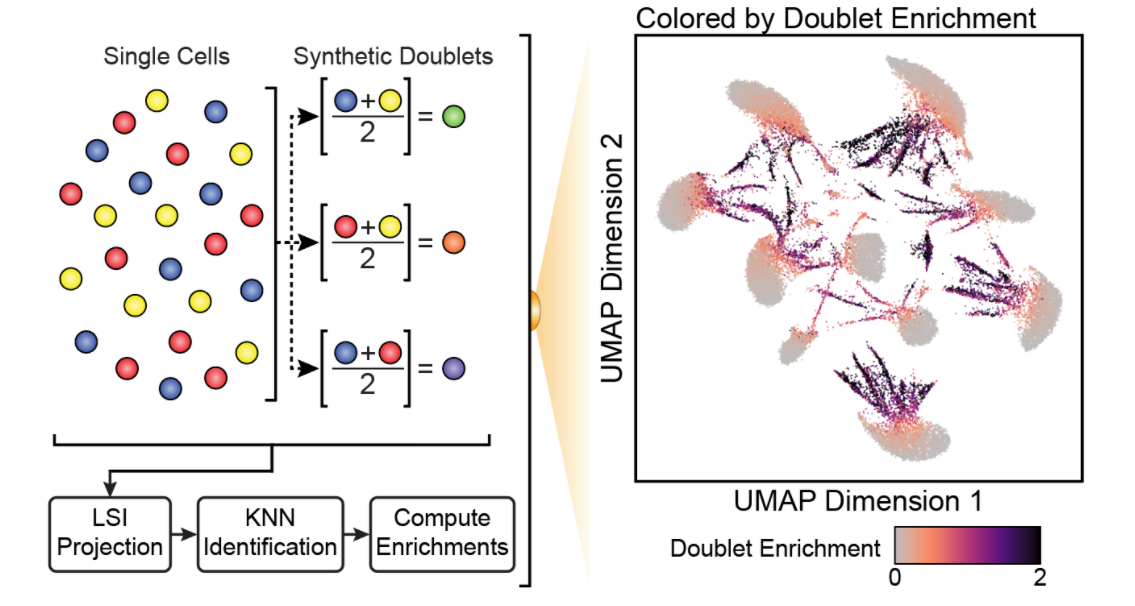

计算双胞过程中,ArchR使用类似于scRNA-seq中计算双胞的方法。将模拟双胞进行迭代多次的聚类和可视化,从而推测双胞

**In [6]:** ```javascript doubScores <- addDoubletScores( input = ArrowFiles, k = 10, #Refers","to","how","many","cells","near","a "pseudo-doublet" to","count. knnMethod = "UMAP", #Refers","to","the","embedding","to","use","for","nearest","neighbor","search","with","doublet","projection. LSIMethod = 1 )

Out [7]:
Using GeneAnnotation set by addArchRGenome(Hg38)!

Using GeneAnnotation set by addArchRGenome(Hg38)!

Validating Arrows...

Getting SampleNames...

1

Getting Cell Metadata...

1

Merging Cell Metadata...

Initializing ArchRProject...

                                               / |
                                             /    \
        .                                  /      |.
        \\\                              /        |.
          \\\                          /           `|.
            \\\                      /              |.
              \                    /                |\
              \\#####\           /                  ||
            ==###########>      /                   ||
             \\##==......\    /                     ||
        ______ =       =|__ /__                     ||      \\\
    ,--' ,----`-,__ ___/'  --,-`-===================##========>
   \               '        ##_______ _____ ,--,__,=##,__   ///
    ,    __==    ___,-,__,--'#'  ==='      `-'    | ##,-/
    -,____,---'       \\####\\________________,--\\_##,/
       ___      .______        ______  __    __  .______
      /   \     |   _  \      /      ||  |  |  | |   _  \
     /  ^  \    |  |_)  |    |  ,----'|  |__|  | |  |_)  |
    /  /_\  \   |      /     |  |     |   __   | |      /
   /  _____  \  |  |\  \\___ |  `----.|  |  |  | |  |\  \\___.
  /__/     \__\ | _| `._____| \______||__|  |__| | _| `._____|



       ___      .______        ______  __    __  .______
      /   \     |   _  \      /      ||  |  |  | |   _  \
     /  ^  \    |  |_)  |    |  ,----'|  |__|  | |  |_)  |
    /  /_\  \   |      /     |  |     |   __   | |      /
   /  _____  \  |  |\  \\___ |  `----.|  |  |  | |  |\  \\___.
  /__/     \__\ | _| `._____| \______||__|  |__| | _| `._____|
  1. outputDirectory:表示指定的outputDirectory.
  2. samples(3): 表示从Arrow文件中获得的样本数目及所有样本。
  3. sampleColData: 包含与每个样本相关ArrowFile信息。
  4. cellColData: 一个称为矩阵cellColData,其中包含与每个细胞信息。使用addDoubletScores()计算了双胞分子,并将这些值添加到ArrowFiles中的每个细胞,我们可以在矩阵中看到对应于"DoubletEnrichment"和"DoubletScore"的列。
  5. numberOfCells:表示细胞总数。
  6. medianTSS: TSS富集分数的中位值。
  7. medianFrags:在所有样本所有细胞中fragment数目的中位值。

3.5 质控

scATAC-seq 数据的质量控制 (QC) 对于去除低质量细胞对后续分析的影响至关重要。在 ArchR 中,考虑了数据的三个特征:

  1. 比对到核基因的fragments的数目。

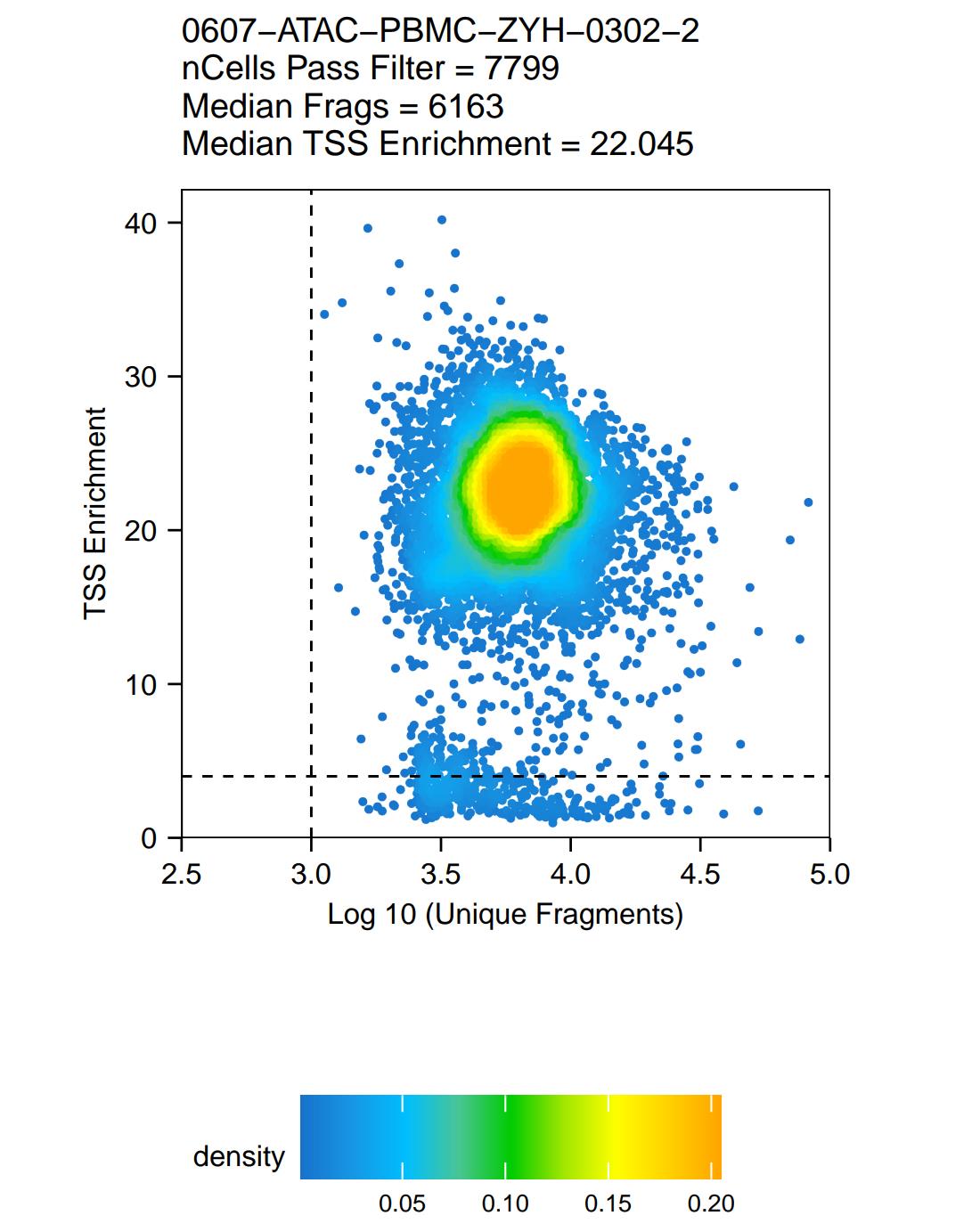

  2. TSS Enrichment分值。分值较低通常是由于细胞死亡或发生破损,这些细胞中细胞核裂解,核基因释放导致转座酶在全基因组范围内进行随机转座。

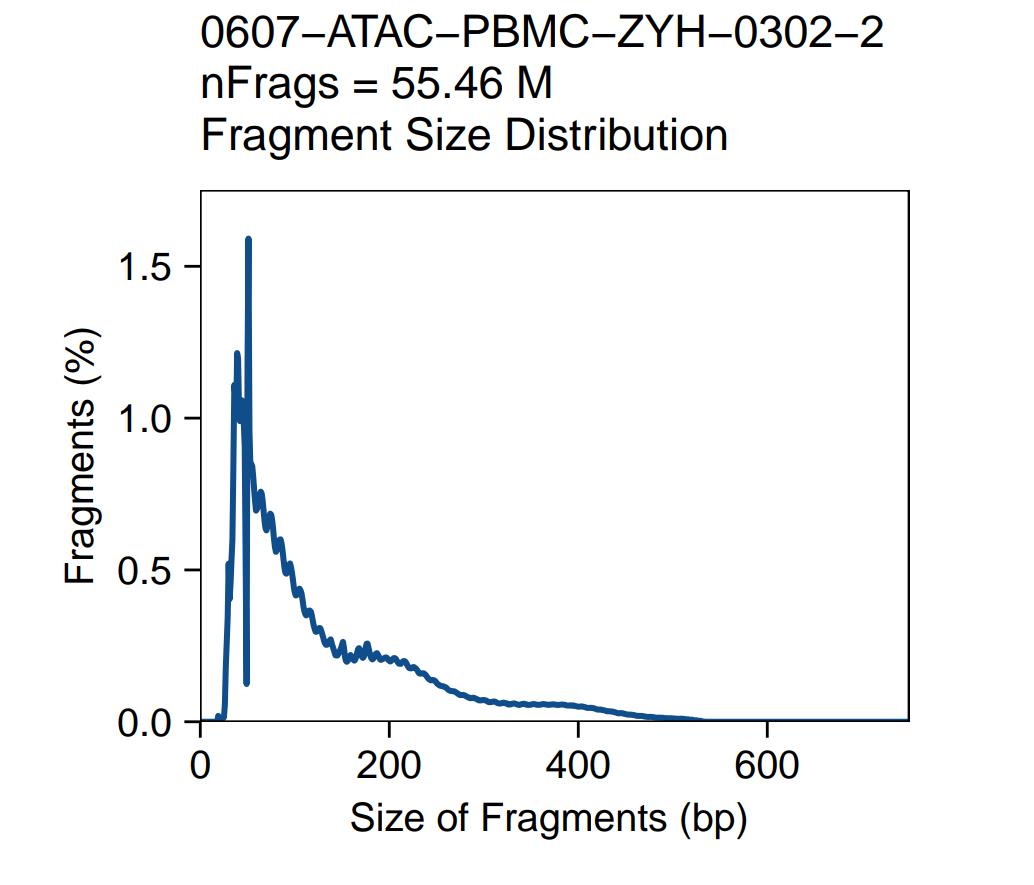

  3. 片段大小分布。由于核小体的周期性,我们预计fragment长度分布在核小体周围的 DNA 长度(约 147 bp)的片段。

在QualityControl文件夹下也包含了创建

3.5.1 绘制样本TSSEnrichment 与nFragment分布情况

In [8]:

library(cowplot)
metadata <- as.data.frame(raw_proj@cellColData)
colours <- ArchR:::paletteDiscrete( values = unique(metadata$Sample))

P1<- ggplot(metadata, aes(x = Sample, y = TSSEnrichment, fill=Sample)) +
  geom_violin(trim=TRUE,color="white",show.legend = F) +
  geom_boxplot(width=0.1,position=position_dodge(0.9),show.legend = F,fill="white",outlier.size = 0,outlier.stroke = 0)+
  scale_fill_manual(values = colours)+
  theme_cowplot()+
  theme(axis.text.x=element_text(colour="black",family="Times",size=10))+
  ylab("TSSEnrichment")+xlab("")

P2<- ggplot(metadata, aes(x = Sample, y = log10(nFrags), fill=Sample)) +
  geom_violin(trim=TRUE,color="white",show.legend = F) +
  geom_boxplot(width=0.1,position=position_dodge(0.9),show.legend = F,fill="white",outlier.size = 0,outlier.stroke = 0)+
  scale_fill_manual(values = colours)+
  theme_cowplot()+
  theme(axis.text.x=element_text(colour="black",family="Times",size=10))+
  ylab(expression(Log[10]*paste("(","nFragment",")",sep = "")))+xlab("")

P <- do.call(plot_grid,c(list(P1,P2),ncol=2,align = "h"))
P

fragment 分布情况

TSS Enrichment 分布情况

3.5.2 细胞过滤

In [9]:

# 根据nFragment以及TSSEnrichment的分布情况进行细胞过滤
proj <- raw_proj[which(raw_proj$nFrags > 3000 & raw_proj$TSSEnrichment >10),]

# 根据预测的双胞分值进行双胞过滤
proj <- filterDoublets(proj, filterRatio = 2)

# filterRatio 参数 过滤细胞数=filterRatio * cellnum * 0.051表示需要过滤的双胞比例为5%2表示需要过滤的双胞比例为10%

Out [9]:
Filtering 1037 cells from ArchRProject!

0607-ATAC-PBMC-ZYH-0302-2 : 1037 of 7201 (14.4%)

3.6 降维

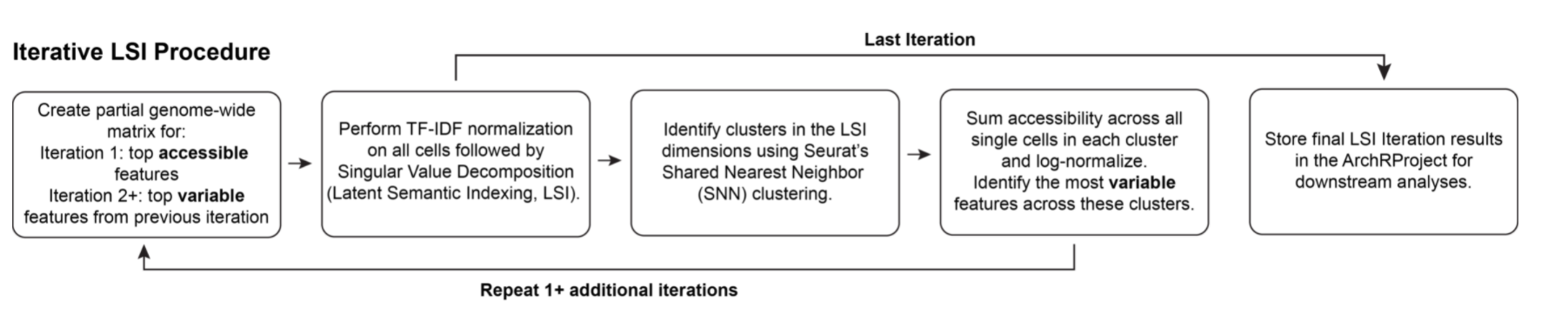

ArchR 在LSI 降维的方法上有些不同,ArchR 的默认 LSI 降维与 Timothy Stuart 在Signac中引入的方法相关,该方法使log(TF-IDF)进行归一化。

LSI 降维的关键输入之一是起始矩阵。到目前为止,scATAC-seq 中的两种主要策略是(1)使用peak区域或(2)全基因组bin。然而,使用 LSI 的峰值区域本质上是具有挑战性的,因为在降维之前我们没有聚类peak。此外,在聚类之前调用全部细胞上的peak会掩盖特定于细胞类型的peak。此外,当将新样本添加到分析中时,联合peak都会发生变化,从而使该策略不太稳定。第二种策略,使用全基因组bin区域,通过使用一致且无偏的特征集(全基因组bin)来解决这些问题。然而,所有区域的所有细胞的全基因组bin矩阵可能变得非常大,500 bp 的 bin 所面临的挑战是会生成大约 600 万个特征,因此,大多数方法使用大于或等于 5 kb 的bin(例如SnapATAC)。但是大多数可访问区域只有几百个碱基对长,5kb的bin将会掩盖一些细胞间开放区域差异。

ArchR的做法是将近600 万个特征矩阵存储在ArrowFiles中,并在降维时通过读取ArrowFiles,促使ArchR对全基因组 500 bp bin 的细胞矩阵非常快速地执行 LSI降维。这种方法解决了分辨率问题,并允许在peak calling之前进行聚类。 此外, ArchR还使用一种"估计 LSI"方法,该方法对总单元的子集执行初始降维。这种估计的 LSI 方法有两个主要用途 - (i) 它加快了降维速度;(ii) 当您减少在初始降维中使用的单元数时,这会降低数据的粒度。这种粒度的降低可以减少数据中的批次效应。但也可能掩盖真正的生物学,因此估计的 LSI 方法应在密切的人工监督下使用。

**In [10]:** ```javascript

proj <- addIterativeLSI(
ArchRProj = proj,
useMatrix = "TileMatrix",
name = "IterativeLSI",
iterations = 5,#用户可查看每次迭代后的结果是否符合预期来选择迭代次数
clusterParams = list( #See","Seurat::FindSample
resolution = c(0.2),
sampleCells = 10000,#downsampleing 1000个细胞进行
n.start = 10
),
varFeatures = 25000,
dimsToUse = 1:30,
force = T
)
mem_used()


Out [11]:
ArchR logging to : ArchRLogs/ArchR-addClusters-3a6c7cfbad-Date-2022-08-23_Time-03-51-02.log
If there is an issue, please report to github with logFile!

2022-08-23 03:51:02 : Running Seurats FindClusters (Stuart et al. Cell 2019), 0.001 mins elapsed.

Computing nearest neighbor graph

Computing SNN

Out [11]:
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck

Number of nodes: 6164
Number of edges: 244355

Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.8623
Number of communities: 15
Elapsed time: 0 seconds

Out [11]:
2022-08-23 03:51:14 : Testing Biased Clusters, 0.189 mins elapsed.

2022-08-23 03:51:14 : Testing Outlier Clusters, 0.19 mins elapsed.

2022-08-23 03:51:14 : Assigning Cluster Names to 15 Clusters, 0.19 mins elapsed.

2022-08-23 03:51:14 : Finished addClusters, 0.191 mins elapsed.

3.8 可视化

In [12]:

proj <- addUMAP(
    ArchRProj = proj,
    reducedDims = "IterativeLSI",
    name = "UMAP",
    nNeighbors = 30,
    minDist = 0.5,
    metric = "cosine", force = T
)
mem_used()

Out [12]:
03:51:19 UMAP embedding parameters a = 0.583 b = 1.334

03:51:19 Read 6164 rows and found 30 numeric columns

03:51:19 Using Annoy for neighbor search, n_neighbors = 30

03:51:19 Building Annoy index with metric = cosine, n_trees = 50

0% 10 20 30 40 50 60 70 80 90 100%

[----|----|----|----|----|----|----|----|----|----|

|

03:51:20 Writing NN index file to temp file /tmp/RtmpecyfKz/file3a6ee557b1

03:51:20 Searching Annoy index using 8 threads, search_k = 3000

03:51:20 Annoy recall = 100%

03:51:21 Commencing smooth kNN distance calibration using 8 threads
with target n_neighbors = 30

03:51:22 Found 2 connected components,
falling back to 'spca' initialization with init_sdev = 1

03:51:22 Using 'irlba' for PCA

03:51:22 PCA: 2 components explained 44.86% variance

03:51:22 Scaling init to sdev = 1

03:51:22 Commencing optimization for 500 epochs, with 261444 positive edges

03:51:30 Optimization finished

03:51:30 Creating temp model dir /tmp/RtmpecyfKz/dir3ab0a7160

03:51:30 Creating dir /tmp/RtmpecyfKz/dir3ab0a7160

03:51:31 Changing to /tmp/RtmpecyfKz/dir3ab0a7160

03:51:31 Creating /home/jovyan/tutorial/Embeddings/Save-Uwot-UMAP-Params-IterativeLSI-3a2f9a1c6b-Date-2022-08-23_Time-03-51-30.tar

3.9 对于多样本去批次

In [13]:

# proj <- addHarmony(
#     ArchRProj = proj,
#     reducedDims = "IterativeLSI",
#     name = "Harmony",
#     groupBy = "Sample",force = T
# )
# proj <- addClusters(
#     input = proj,
#     reducedDims = "Harmony",
#     method = "Seurat",
#     name = "Harmony_Clusters",
#     maxClusters = 35,
#     resolution = 0.8,force = T
# )
# proj <- addUMAP(
#     ArchRProj = proj,
#     reducedDims = "Harmony",
#     name = "UMAPHarmony",
#     nNeighbors = 30,
#     minDist = 0.5,
#     metric = "cosine",force = T
# )

绘制dimplot
In [14]:

p1 <- plotEmbedding(ArchRProj = proj, colorBy = "cellColData", name = "Sample", embedding = "UMAP")
p2 <- plotEmbedding(ArchRProj = proj, colorBy = "cellColData", name = "Clusters", embedding = "UMAP")

p1
p2
#plotPDF(p1,p2,p3,p4, name = "Filtered-cell-UMAP2Harmony-Sample-Sample.pdf", ArchRProj = proj, addDOC = FALSE, width = 5, height = 5)

Out [14]:
ArchR logging to : ArchRLogs/ArchR-plotEmbedding-3a36f1046d-Date-2022-08-23_Time-03-51-38.log
If there is an issue, please report to github with logFile!

Getting UMAP Embedding

ColorBy = cellColData

Plotting Embedding

1

ArchR logging successful to : ArchRLogs/ArchR-plotEmbedding-3a36f1046d-Date-2022-08-23_Time-03-51-38.log

ArchR logging to : ArchRLogs/ArchR-plotEmbedding-3a369b13af-Date-2022-08-23_Time-03-51-38.log
If there is an issue, please report to github with logFile!

Getting UMAP Embedding

ColorBy = cellColData

Plotting Embedding

1

ArchR logging successful to : ArchRLogs/ArchR-plotEmbedding-3a369b13af-Date-2022-08-23_Time-03-51-38.log


3.10 获取每个无监督聚类的marker genes

ArchR获取GeneActivityScore Matrix

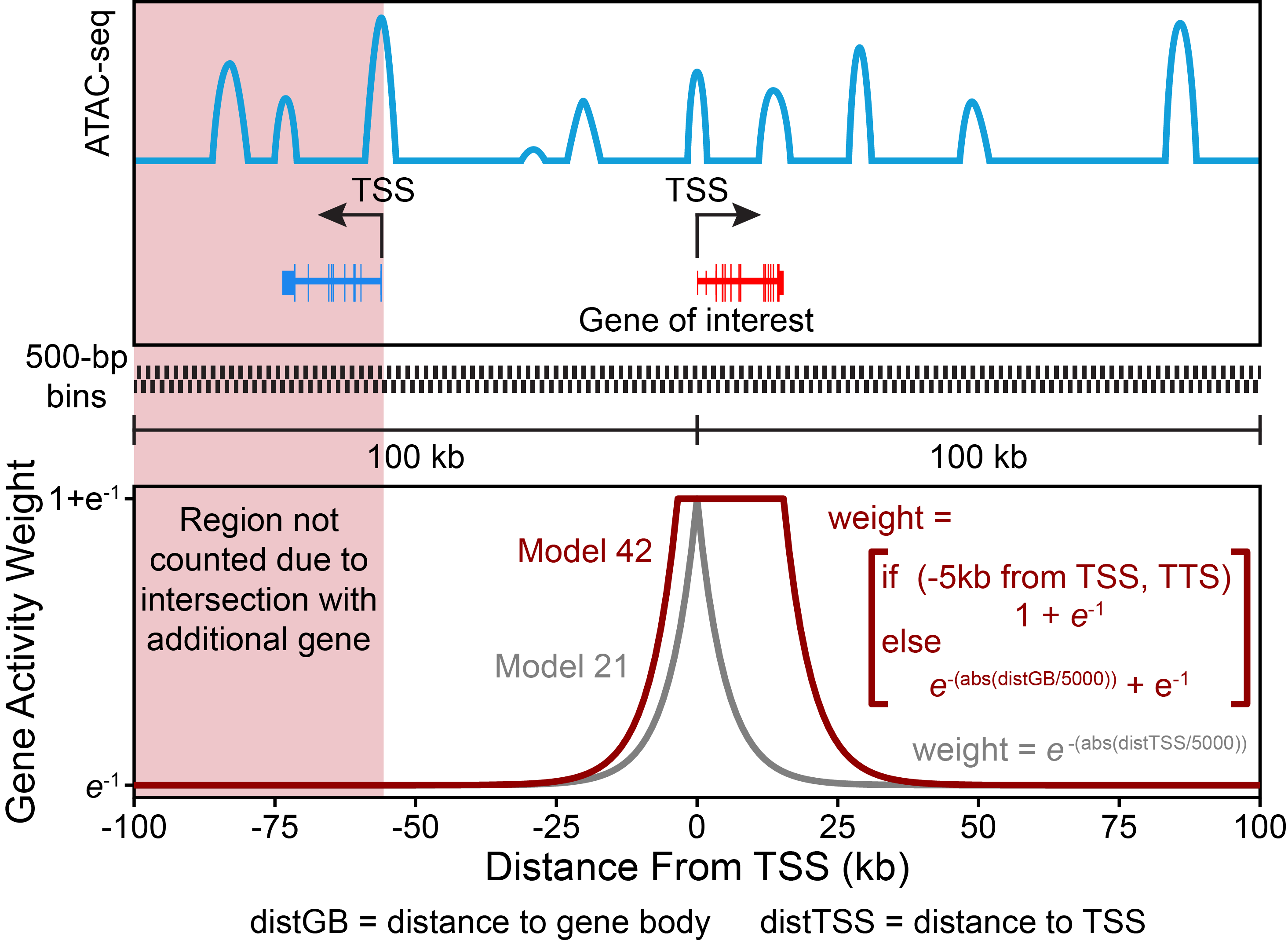

Gene Activity Score 计算主要包含三个方面:

  1. 位于gene body区域的fragment全部参与Gene Activity Score的计算。
  2. 使用加权函数,距离不同的fragment对Gene Activity Score有不同的贡献度。
  3. 使用基因边界,使不相关的调控元件对基因评分的贡献最小化。

3.10.1 使用MAGIC对gene activity score 进行降噪

在scATAC-seq数据中,一个特定位置具有两种状态,一种是开放,这一种是不开放。由于技术限制及其他一系列的原因导致scATAC-seq比scRNA-seq更加稀疏。从而导致一些基因的activity score被噪音覆盖。为去除噪音影响,使用基于流行学习的MAGIC通过平滑附近细胞的信号来推断基因评分。
In [15]:

proj <- addImputeWeights(
  ArchRProj = proj,
  reducedDims = "IterativeLSI",
  dimsToUse = NULL,
  scaleDims = NULL,
  corCutOff = 0.75,
  td = 3,
  ka = 4,
  sampleCells = 1000,
  nRep = 2,
  k = 15,
  epsilon = 1,
  useHdf5 = TRUE,
  randomSuffix = FALSE,
  threads = getArchRThreads(),
  seed = 1,
  verbose = TRUE,
  logFile = createLogFile("addImputeWeights")
)


Out [15]:
ArchR logging to : ArchRLogs/ArchR-addImputeWeights-3af417d13-Date-2022-08-23_Time-03-51-46.log
If there is an issue, please report to github with logFile!

2022-08-23 03:51:46 : Computing Impute Weights Using Magic (Cell 2018), 0 mins elapsed.

3.10.2 获取marker genes

为了根据GeneActivityScore获取标记基因,我们将**getMarkerFeatures()函数称为useMatrix = "GeneScoreMatrix"。我们指定我们想知道集群特定的特征,groupBy = "Clusters"它告诉 ArchR 使用"Cluster"列cellColData**来对细胞进行分组
In [16]:

markersGS <- getMarkerFeatures(
    ArchRProj = proj,
    useMatrix = "GeneScoreMatrix",
    groupBy = "Clusters",
    bias = c("TSSEnrichment", "log10(nFrags)"),
    testMethod = "wilcoxon"
)

#保存每个cluster的markgenes到tsv文件中
markerList <- getMarkers(markersGS)
markerList$C2
for (i in names(markerList)){if(dim(markerList[[i]])[1] > 0){markerList[[i]]$cluster <- i}}
b <- do.call(rbind,markerList)
#write.table(b,file="cortex_filtered_markergene_list.tsv",quote=F,row.names=F,sep="\t")

Out [16]:
ArchR logging to : ArchRLogs/ArchR-getMarkerFeatures-3a84d3fce-Date-2022-08-23_Time-03-51-59.log
If there is an issue, please report to github with logFile!

MatrixClass = Sparse.Double.Matrix

2022-08-23 03:51:59 : Matching Known Biases, 0.001 mins elapsed.

###########
2022-08-23 03:52:56 : Completed Pairwise Tests, 0.95 mins elapsed.
###########

ArchR logging successful to : ArchRLogs/ArchR-getMarkerFeatures-3a84d3fce-Date-2022-08-23_Time-03-51-59.log

绘制已知marker gene的feature plot
In [17]:

#绘制期望基因的DimPlot
markerGenes  <- c(
    "CD3D","CD4","CD8A",  #T cells
    "CD19", #B cells
    "XBP1", #plasma
    "CD14", #Monocytes
    "GNLY" # NK cells
  )
p <- plotEmbedding(
        ArchRProj = proj,
        colorBy = "GeneScoreMatrix",
        name = markerGenes,
        embedding = "UMAP",
        imputeWeights = getImputeWeights(proj)
    )

p$CD3D

p2 <- lapply(p, function(x){
    x + guides(color = FALSE, fill = FALSE) +
    theme_ArchR(baseSize = 6.5) +
    theme(plot.margin = unit(c(0, 0, 0, 0), "cm")) +
    theme(
        axis.text.x=element_blank(),
        axis.ticks.x=element_blank(),
        axis.text.y=element_blank(),
        axis.ticks.y=element_blank()
    )
})
do.call(cowplot::plot_grid, c(list(ncol = 3),p2))

# plotPDF(plotList = p,
# name = paste0("Plot-filtered-UMAP-",names(marker_list[x]),"-W-Imputation.pdf"),
# ArchRProj = proj,
# addDOC = FALSE, width = 5, height = 5)

Out [17]:
Getting ImputeWeights

ArchR logging to : ArchRLogs/ArchR-plotEmbedding-3a4cca3c32-Date-2022-08-23_Time-03-53-04.log
If there is an issue, please report to github with logFile!

Getting UMAP Embedding

ColorBy = GeneScoreMatrix

Getting Matrix Values...

2022-08-23 03:53:04 :

1

Imputing Matrix

Using weights on disk

Using weights on disk

Plotting Embedding

1
2
3
4
5
6
7

ArchR logging successful to : ArchRLogs/ArchR-plotEmbedding-3a4cca3c32-Date-2022-08-23_Time-03-53-04.log

Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”
Warning message:
guides(<scale> = FALSE) is deprecated. Please use guides(<scale> = "none") instead.”


3.11 细胞类型注释

In [18]:

# 根据marker genes进行注释
markerGenes  <- c(
    "CD3D","CD4","CD8A",  #T cells
    "CD19", #B cells
    "XBP1", #plasma
    "CD14", #Monocytes
    "GNLY" # NK cells
  )
# 通过scRNA transfer进行注释
load('/opt/example/pbmc3k.rda')
#library(Seurat)
#library(SeuratData)
#InstallData("pbmc3k")
#library(pbmc3k.SeuratData)
#data("pbmc3k")

seRNA <- pbmc3k
seRNA@active.assay <- "RNA"
proj <- addGeneIntegrationMatrix(
    ArchRProj = proj,
    useMatrix = "GeneScoreMatrix",
    matrixName = "GeneIntegrationMatrix",
    reducedDims = "IterativeLSI",
    seRNA = seRNA,
    addToArrow = TRUE,
    groupRNA = "seurat_annotations",
    nameCell = "predictedsubCell",
    nameGroup = "predictedsubGroup",
    nameScore = "predictedsubScore"
)

Out [18]:
ArchR logging to : ArchRLogs/ArchR-addGeneIntegrationMatrix-3a26915e37-Date-2022-08-23_Time-03-53-51.log
If there is an issue, please report to github with logFile!

2022-08-23 03:53:51 : Running Seurat's Integration Stuart* et al 2019, 0.001 mins elapsed.

2022-08-23 03:53:51 : Checking ATAC Input, 0.001 mins elapsed.

2022-08-23 03:53:51 : Checking RNA Input, 0.002 mins elapsed.

2022-08-23 03:53:53 : Found 11718 overlapping gene names from gene scores and rna matrix!, 0.024 mins elapsed.

2022-08-23 03:53:53 : Creating Integration Blocks, 0.024 mins elapsed.

2022-08-23 03:53:53 : Prepping Interation Data, 0.024 mins elapsed.

2022-08-23 03:53:53 : Computing Integration in 1 Integration Blocks!, 0 mins elapsed.

2022-08-23 03:53:53 : Block (1 of 1) : Computing Integration, 0 mins elapsed.

2022-08-23 03:53:53 : Block (1 of 1) : Identifying Variable Genes, 0.003 mins elapsed.

2022-08-23 03:53:54 : Block (1 of 1) : Getting GeneScoreMatrix, 0.014 mins elapsed.

2022-08-23 03:54:00 : Block (1 of 1) : Imputing GeneScoreMatrix, 0.118 mins elapsed.

Getting ImputeWeights

2022-08-23 03:54:37 : Block (1 of 1) : Seurat FindTransferAnchors, 0.735 mins elapsed.

2022-08-23 03:55:07 : Block (1 of 1) : Seurat TransferData Cell Group Labels, 1.237 mins elapsed.

2022-08-23 03:55:09 : Block (1 of 1) : Seurat TransferData Cell Names Labels, 1.258 mins elapsed.

2022-08-23 03:55:13 : Block (1 of 1) : Saving TransferAnchors Joint CCA, 1.331 mins elapsed.

2022-08-23 03:55:14 : Block (1 of 1) : Completed Integration, 1.351 mins elapsed.

2022-08-23 03:55:15 : Block (1 of 1) : Plotting Joint UMAP, 1.367 mins elapsed.

2022-08-23 03:55:39 : Completed Integration with RNA Matrix, 1.758 mins elapsed.

ArchR logging successful to : ArchRLogs/ArchR-addGeneIntegrationMatrix-3a26915e37-Date-2022-08-23_Time-03-53-51.log

绘制预测细胞类型的DimPlot
In [19]:

#绘制预测细胞类型的DimPlot
p3 <- plotEmbedding(
    proj,
    colorBy = "cellColData",
    name = "predictedsubGroup",
    embedding = "UMAP"
 )

p3

Out [19]:
ArchR logging to : ArchRLogs/ArchR-plotEmbedding-3a4ecea683-Date-2022-08-23_Time-03-55-47.log
If there is an issue, please report to github with logFile!

Getting UMAP Embedding

ColorBy = cellColData

Plotting Embedding

1

ArchR logging successful to : ArchRLogs/ArchR-plotEmbedding-3a4ecea683-Date-2022-08-23_Time-03-55-47.log

In [20]:

saveRDS(proj,'proj.RDS')

In [21]:

proj

Out [21]:

       ___      .______        ______  __    __  .______
      /   \     |   _  \      /      ||  |  |  | |   _  \
     /  ^  \    |  |_)  |    |  ,----'|  |__|  | |  |_)  |
    /  /_\  \   |      /     |  |     |   __   | |      /
   /  _____  \  |  |\  \\___ |  `----.|  |  |  | |  |\  \\___.
  /__/     \__\ | _| `._____| \______||__|  |__| | _| `._____|

In [22]:

getwd()
,'/home/jovyan',

In []:
